library(pilotr)

Behavioural outcomes are seldom Gaussian. pilotr maps the linear predictor $\eta = \beta_0 + \sum_k \beta_k x_k + (\text{random effects})$ to an outcome through one of seven response families. An important consequence is that the fixed intercept and effect live on the family’s own scale. That scale is the identity for Gaussian, the log scale for reaction times and counts, and the logit scale for accuracy, ordinal and proportion outcomes. This vignette presents each family with scale-appropriate parameters.

The helper below builds a two-group between-subjects design and reports the group means.

demo <- function(family, intercept, effect, n = 4000, ...) {
  spec <- build_spec(list(
    name = family, seed = 1, design_kind = "between", n_subject = n,
    factor_name = "group", lev1 = "control", lev2 = "treatment",
    intercept = intercept, effect = effect, family = family, resp_name = "", ...))
  d <- simulate_design(spec)
  y <- d[[spec$response$name]]
  list(spec = spec, data = d, y = y, by_group = tapply(y, d$group, mean))
}

library(ggplot2)
fam_hist <- function(y, fill, title, xlab) {
  ggplot(data.frame(y = y), aes(y)) +
    geom_histogram(bins = 40, fill = fill, colour = NA) +
    labs(title = title, x = xlab, y = "count") +
    theme_minimal(base_size = 12) +
    # theme_minimal still paints a white plot.background over the transparent device
    # canvas, so both surfaces have to be cleared for the page colour to reach the
    # figure. The ink stays at its default: the website inverts the figure in dark mode,
    # which turns the dark axis text light of its own accord.
    theme(plot.background  = element_rect(fill = NA, colour = NA),
          panel.background = element_rect(fill = NA, colour = NA),
          panel.grid       = element_line(colour = "grey80"))
}

Gaussian

This is the default, with $y = \eta + \varepsilon$ and residual standard deviation sigma. It suits continuous, roughly symmetric outcomes such as ratings averaged over many trials or standardised scores.

g <- demo("gaussian", intercept = 100, effect = 5, sigma = 10)
round(g$by_group, 2)
#>   control treatment
#>     97.50    102.41
fam_hist(g$y, "#2C6FB0", "Gaussian", "score")

Shifted lognormal (reaction times)

Reaction times are right-skewed and bounded below. pilotr models them as $y = \text{shift} + \exp(\eta + \varepsilon)$ , with the effect on the log scale. An intercept of 6 implies a typical RT near exp(6) ms above the shift.

rt <- demo("shifted_lognormal", intercept = 6, effect = 0.1, sigma = 0.3, shift = 200)
round(rt$by_group, 1)
#>   control treatment
#>     600.6     642.6
fam_hist(rt$y, "#B0402C", "Shifted lognormal (RT)", "RT (ms)")

Lognormal (positive continuous)

The plain lognormal family is the shifted lognormal without the shift, $y = \exp(\eta + \varepsilon)$ , suited to positive continuous outcomes such as per-word reading times. As with reaction times the effect is on the log scale.

ln <- demo("lognormal", intercept = 6, effect = 0.1, sigma = 0.3)
round(ln$by_group, 1)
#>   control treatment
#>     400.6     442.6
fam_hist(ln$y, "#7A4FB0", "Lognormal", "reading time (ms)")

Bernoulli (accuracy)

Binary accuracy is modelled through a logit link. The intercept is the log-odds of a correct response, and the effect is a log-odds difference between conditions.

acc <- demo("bernoulli", intercept = 0, effect = 0.5)
round(acc$by_group, 3)   # P(correct) by group
#>   control treatment
#>     0.446     0.569

Poisson (counts)

Counts via a log link (e.g. number of fixations, errors, or events). An intercept of 1.5 implies a base rate near exp(1.5).

cts <- demo("poisson", intercept = 1.5, effect = 0.3)
round(cts$by_group, 2)   # mean count by group
#>   control treatment
#>      3.85      5.18
table(cts$y)[1:8]
#>
#>   0   1   2   3   4   5   6   7
#>  41 225 466 698 711 659 466 334

Ordinal (Likert)

Ordered categorical responses via a cumulative-logit model with user thresholds. The effect shifts the latent distribution across the thresholds.

ord <- build_spec(list(
  name = "likert", seed = 1, design_kind = "between", n_subject = 4000,
  factor_name = "group", lev1 = "control", lev2 = "treatment",
  intercept = 0, effect = 0.8, family = "ordinal", resp_name = "rating",
  thresholds = "-2, -0.6, 0.6, 2"))
r <- simulate_design(ord)
round(prop.table(table(r$group, r$rating), 1), 2)   # category proportions by group
#>
#>                1    2    3    4    5
#>   control   0.16 0.30 0.27 0.19 0.08
#>   treatment 0.09 0.18 0.29 0.28 0.17

Beta (proportions)

Bounded proportions in (0, 1) are modelled through a mean–precision parameterisation. The mean is logit⁻¹(η) and phi is the precision, with larger values giving a tighter distribution.

bt <- demo("beta", intercept = 0, effect = 0.8, phi = 8)
round(bt$by_group, 3)   # mean proportion by group
#>   control treatment
#>     0.400     0.592

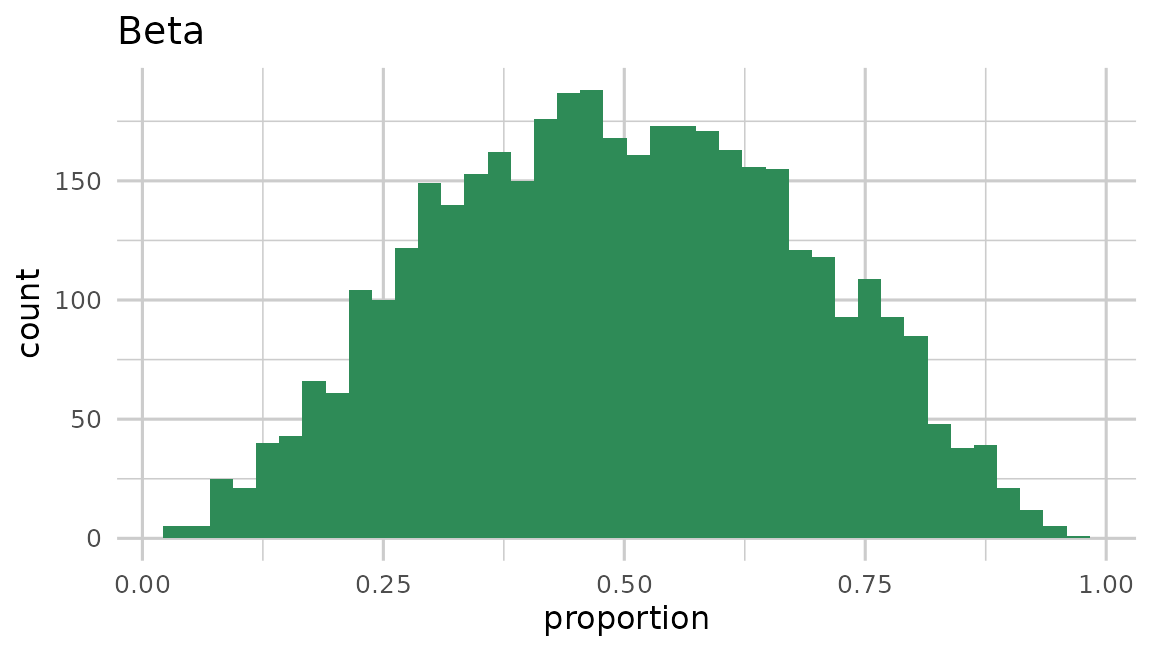

fam_hist(bt$y, "#2E8B57", "Beta", "proportion")

Choosing a family

Outcome	Family	Scale of the effect
Continuous, symmetric	`gaussian`	identity
Reaction time	`shifted_lognormal`	log
Positive continuous (e.g. reading time)	`lognormal`	log
Accuracy (0/1)	`bernoulli`	logit
Counts	`poisson`	log
Likert / ordered categories	`ordinal`	logit (cumulative)
Proportions in (0, 1)	`beta`	logit (mean)

These match the families that researchers fit in lme4, glmmTMB and brms, so a design simulated here corresponds to the model that will later be fit. The point-and-click application exposes six of the seven families. The full engine, including the plain lognormal, continuous predictors, interactions, nesting and partial crossing, is available by writing the specification directly, as shown next.

Writing the specification directly

The specification is a plain list, so richer designs than the builder covers can be assembled by hand. Starting from a build_spec() result, the example below adds a continuous item-level predictor, an interaction with the categorical effect, a per-subject item subset (partial crossing) and an extra grouping factor that nests subjects.

spec <- build_spec(list(
  name = "reading", seed = 1, design_kind = "within", include_items = TRUE,
  n_subject = 12, n_item = 24,
  factor_name = "condition", lev1 = "related", lev2 = "unrelated",
  intercept = 6, effect = 0.05,
  subj_int_sd = 0.12, subj_slope_sd = 0.04, subj_corr = 0.2,
  item_int_sd = 0.08, item_slope_sd = 0.02, item_corr = -0.1,
  family = "lognormal", resp_name = "RT", sigma = 0.25))

spec$predictors <- list(list(name = "freq", varies_by = "item", mean = 0, sd = 1))
spec$fixed$coefficients[["effect:freq"]] <- 0.02   # an interaction with the effect
spec$units$item$per_subject <- 10                  # each subject sees 10 of the 24 items
spec$random$class <- list(over = "subject", n = 6, intercept_sd = 0.05)  # subjects nested in classes

head(simulate_design(spec))
#>   subject item class condition      freq       RT
#> 1       1    2     1   related  2.355932 558.9340
#> 2       1    2     1 unrelated  2.355932 609.7181
#> 3       1    7     1   related -2.020596 449.9641
#> 4       1    7     1 unrelated -2.020596 630.8554
#> 5       1    8     1   related  1.017863 507.4829
#> 6       1    8     1 unrelated  1.017863 445.2669

The derived columns follow from the specification: freq is the continuous predictor and class is the nesting factor. The auto-derived formula picks up the interaction as effect_freq and the extra grouping factor as (1 | class).

model_formula(spec)
#> .y ~ effect + effect_freq + (1 + effect | subject) + (1 + effect |
#>     item) + (1 | class)

Ready-to-run specifications of this kind, including a continuous-predictor reading-time design, a nested-clusters design and a partial-crossing design, ship in the repository’s spec/examples/ directory, and load_spec() reads any of them back.
